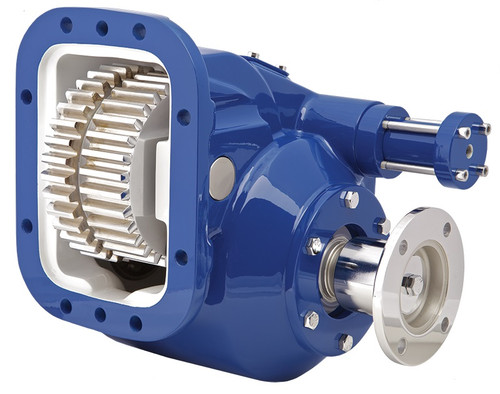

The Muncie 82 Series Power Take-Off, part number 828S-KIT13-L1DX or 828SKIT13L1DX, is an 8-bolt heavy-duty mechanical shift PTO built for high-torque applications. The cast iron housing supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it well suited for high-volume hydraulic pumps and high-CFM blowers. Double-acting air shift provides positive engagement and disengagement. The unit offers 8 speed ratio options and 9 output shaft configurations. Two companion flange output types cover both remote pump and mechanical drive setups. Seven direct-mount pump options include S.A.E. "B," "BB," "C," and "D" flanges plus DIN 5462 mounts. Rotatable direct-mount flanges allow pump positioning for maximum clearance. Available in 2 assembly arrangements. Call us to confirm proper fit for your transmission application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
8 available speed ratios; 9 output shaft options
Seven direct-mount pump flange options: S.A.E. B, BB, C, D and DIN 5462
Rotatable direct-mount flanges for maximum pump clearance
Tech Specs
- Housing Construction: Cast Iron
- Shift Type: Double-Acting Air Shift
- Speed Ratios Available: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Direct-Mount Pump Options: 7 (S.A.E. B, BB, C, D; DIN 5462)
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Alternate Part Number: MU828SKIT13L1DX
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
