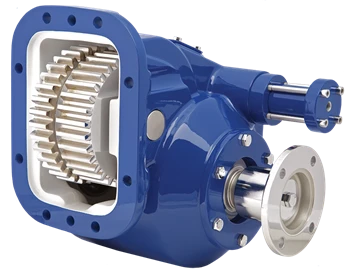

The Muncie 82 Series Power Take-Off, part number 828S-U5710-D3EX or 828SU5710D3EX, is built for heavy-duty, high-torque applications. The 82 Series uses a double-acting air shift for positive engagement and disengagement, and features a cast iron housing. The series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it suited for high-volume pumps and high-CFM blowers. Rotatable direct mount flanges allow pump positioning for clearance, with seven direct mount pump options including SAE "B", "BB", "C", "D", and DIN 5462 mounts. Call us to confirm proper fit for your specific transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct mount pump options: SAE "B", "BB", "C", "D", and DIN 5462 mounts
Rotatable direct mount flanges for pump positioning and clearance
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-U5710-D3EX or 828SU5710D3EX
- Shift Type: Double-acting air shift
- Housing Material: Cast iron
- Intermittent Torque Capacity: Up to 500 lb.ft. at 1,000 RPM
- Continuous Torque Capacity: Up to 350 lb.ft.
- Intermittent Horsepower: Up to 95 H.P. at 1,000 RPM
- Direct Mount Pump Options: 7 (SAE "B", "BB", "C", "D"; DIN 5462)
- Pump Flange: Rotatable (standard)
- Assembly Arrangements: 2
- Available Speed Ratios: 8
- Output Shaft Options: 9
