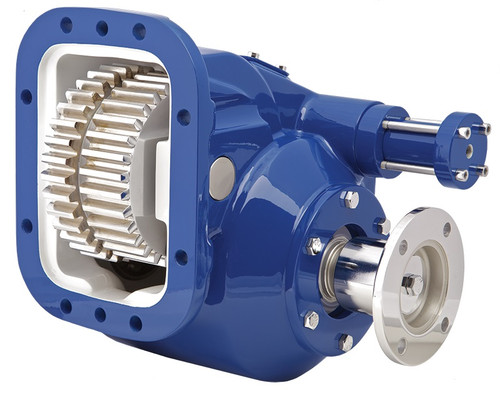

The Muncie 828S-U6205-D2CP or 828SU6205D2CP is a heavy-duty power take-off from Muncie's 82 Series, engineered for high-torque applications such as driving high-volume hydraulic pumps and high-CFM blowers. The 82 Series features a double-acting air shift for positive engagement and disengagement, a cast iron housing, and a rotatable direct-mount pump flange for maximum installation clearance. The series supports up to 500 lb.ft. of intermittent torque and 95 H.P. at 1,000 RPM. Seven SAE direct-mount pump options are available, including "B," "BB," "C," and "D" flanges, plus DIN 5462 mounts. Call us to confirm proper fitment for your specific transmission and application.
Features
Muncie 82 Series heavy-duty PTO, part number 828S-U6205-D2CP or 828SU6205D2CP
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Series-rated up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Rotatable direct-mount pump flange for flexible installation positioning
Seven SAE and DIN 5462 direct-mount pump flange options available
