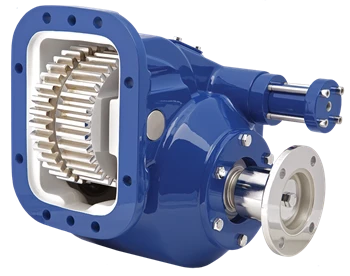

The Muncie 828S-U6815-D3CX or 828SU6815D3CX is a heavy-duty power take-off from Muncie's 82 Series, engineered for high-torque applications including high-volume pumps and high-CFM blowers. The 82 Series features a cast iron housing and a double-acting air shift mechanism for positive engagement and disengagement. The series supports up to 500 lb-ft of intermittent torque and 95 HP at 1,000 RPM, with rotatable direct-mount flanges that allow pump positioning for maximum clearance. Seven direct-mount pump flange options are available, including SAE "B", "BB", "C", and "D" mounts, plus DIN 5462. Call us to confirm proper fit and output configuration for your application.
Features
Cast iron housing construction for heavy-duty durability
Double-acting air shift for positive engagement and disengagement
Up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM
Rotatable direct-mount pump flanges for maximum clearance positioning
Seven direct-mount pump options including SAE B, BB, C, D and DIN 5462 mounts
Available in two companion flange output types for remote pump and mechanical drives
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Direct-mount pump options: 7 (SAE "B", "BB", "C", "D"; DIN 5462)
- Output shaft options: 9
- Assembly arrangements: 2
- Rotatable pump flange: Standard
- Speed ratios available in series: 8
- Intermittent torque (ratio 05): 500 lb-ft (678 Nm)
- Continuous torque (ratio 05): 350 lb-ft (475 Nm)
- Intermittent HP at 1,000 RPM (ratio 05): 95 HP (71 kW)
