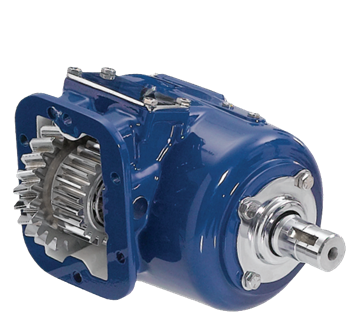

Genuine Muncie PTO P/N: CB6B-I8405-H3BP, this item is obsolete. Please call us for a recommendation.
Features
19 transmission input gears: Fits most popular automatic and manual transmissions
Three remote mount output shafts in keyed and flange types: Versatility for remote pump drives
S.A.E. "A", "B", and "BB"; DIN 5462 direct mount pump options: Fits most popular pumps
Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
Optional pulse generator: Lets System Protection Device monitor PTO shaft speed
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
