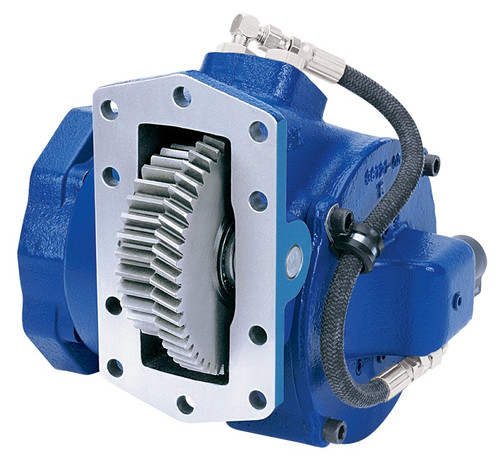

The Muncie CS10-A1005-H3PB or CS10A1005H3PB is a 10-bolt heavy-duty clutch shift power take-off from Muncie Power Products' CS10 Series. This PTO ships with two assembly arrangements, letting you mount it shaft high or shaft low on either side of the transmission. Direct mount flanges are rotatable for maximum pump clearance, and pump interface options include SAE "B", "BB", and "C" as well as DIN 5462 configurations, covering most popular hydraulic pumps. Three remote mount output shaft styles in both keyed and flange types provide flexibility for remote pump drive setups. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged, and standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift PTO from Muncie Power Products CS10 Series
Three remote mount output shaft styles available in keyed and flange types
Direct mount pump flanges are rotatable for pump positioning and clearance
SAE "B", "BB", and "C" plus DIN 5462 direct mount pump interfaces
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| CS10 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
