The Muncie CS10-A1005-H3ZD (also referenced as CS10A1005H3ZD) is a 10-bolt, heavy-duty clutch shift Power Take-Off from the Muncie CS10 Series. It supports SAE "B", "BB", and "C" as well as DIN 5462 direct-mount pump configurations, with rotatable direct-mount flanges that let you position the pump for maximum clearance. Three remote-mount output shafts are available in both keyed and flange types, giving flexibility for remote pump drive setups. Two assembly arrangements allow the unit to be mounted shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included, and Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. Call us to confirm proper fit for your transmission and application.
Features

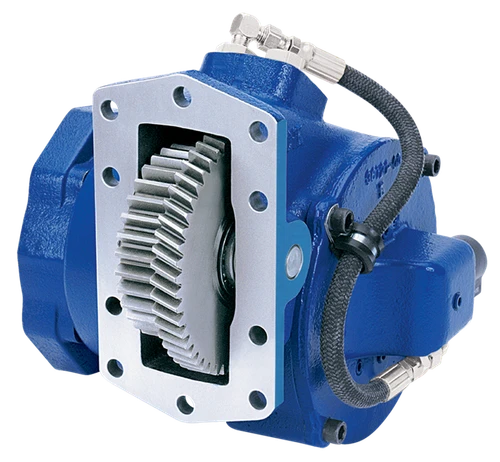

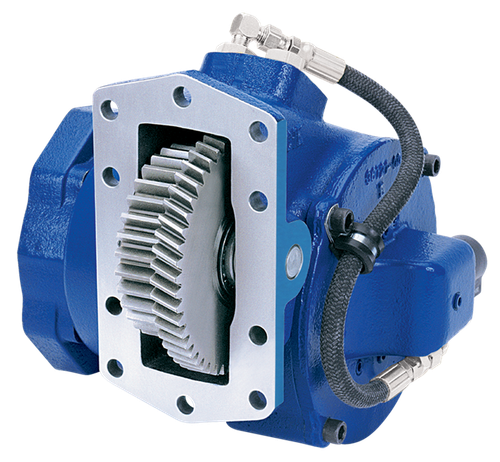

Muncie CS10 Series clutch shift PTO, part number CS10-A1005-H3ZD or CS10A1005H3ZD
10-bolt heavy-duty mounting configuration
SAE "B", "BB", and "C"; DIN 5462 direct-mount pump flange options
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Two assembly arrangements: shaft-high or shaft-low, either side of transmission
Tech Specs
Additional Information
| CS10 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
