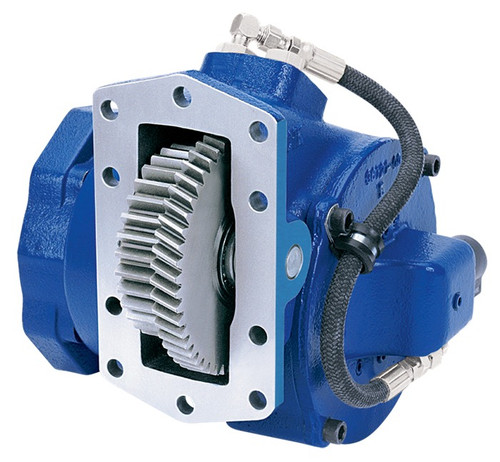

The Muncie CS10-A1005-J3IX is a CS10 Series clutch shift power take-off built for heavy-duty applications. This 10-bolt unit supports SAE "B", "BB", and "C" as well as DIN 5462 direct-mount pump configurations, with rotatable direct-mount flanges for pump positioning clearance. Three remote-mount output shafts are available in both keyed and flange types. Muncie's patented drag brake prevents shaft rotation when the PTO is in the OFF position. Standard pressure lubrication is included at no extra cost. Two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Part number CS10-A1005-J3IX or CS10A1005J3IX. Call us to confirm proper fit for your transmission and pump combination.
Features
CS10 Series clutch shift PTO, 10-bolt heavy-duty configuration
SAE "B", "BB", and "C"; DIN 5462 direct-mount pump options fit most popular pumps
Rotatable direct-mount flanges allow pump positioning for maximum clearance
Three remote-mount output shafts in keyed and flange types for remote pump drives
Patented Muncie drag brake prevents shaft rotation in the OFF position
Two assembly arrangements: mount shaft-high or shaft-low on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
