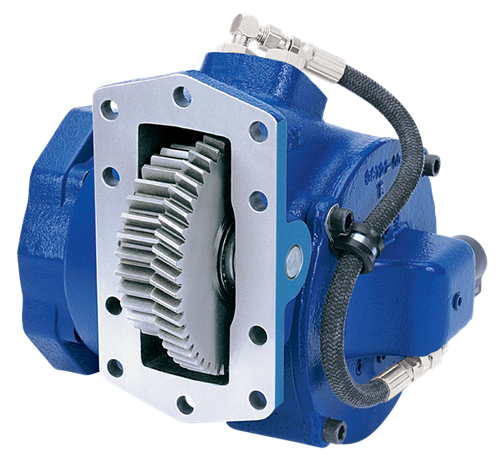

The Muncie CS10-A1008-J32X or CS10A1008J32X is a 10-bolt, heavy-duty clutch shift power take-off from the CS10 Series. Designed for demanding applications, this PTO features standard pressure lubrication and Muncie's patented drag brake, which prevents output shaft rotation when the unit is disengaged. Direct mount flanges are rotatable for pump clearance, and the unit accepts SAE "B", "BB", and "C" as well as DIN 5462 direct mount pumps. Three remote mount output shaft options cover both keyed and flange configurations. Two assembly arrangements let installers position the PTO shaft high or low on either side of the transmission. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift (CS10 Series) design
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Rotatable direct mount flanges accept SAE "B", "BB", and "C" pumps as well as DIN 5462
Three remote mount output shaft options in keyed and flange types
Standard pressure lubrication included
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
