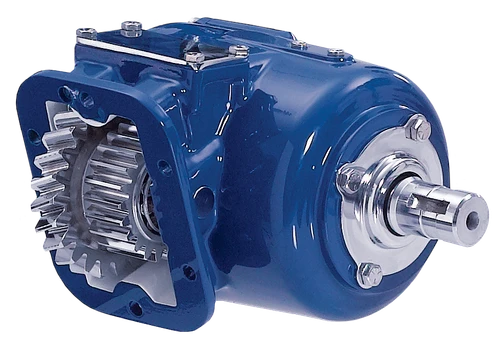

The Muncie CS6B-A6704-H1IP or CS6BA6704H1IP is a CS6 Series power take-off configured as a 6-bolt clutch shift unit. It fits a wide range of automatic and manual transmissions, including the Allison 1000 and 2000 series, using one of six available transmission input gears. Direct mount pump flanges conform to SAE "A", "B", and "BB" standards as well as DIN 5462, and all flanges are rotatable so the pump clears surrounding components. Three remote mount output shaft options - keyed and flange types - handle varied installation layouts. Muncie's patented drag brake prevents shaft rotation when the PTO is off. An optional pulse generator connects to a System Protection Device to monitor output shaft speed. Call us to confirm proper fit for your specific transmission and pump setup.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series and many manual transmissions via six transmission input gears
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flanges - rotatable for clearance positioning
Three remote mount output shaft options: keyed and flange types
Patented Muncie drag brake prevents shaft rotation in the OFF position
Optional pulse generator supports System Protection Device shaft-speed monitoring
Tech Specs
- Part Number: CS6B-A6704-H1IP or CS6BA6704H1IP
- Series: CS6
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Standards: SAE "A", "B", "BB"; DIN 5462
- Remote Mount Output Shafts: Keyed and flange types (3 options)
- Transmission Input Gears: 6
- Drag Brake: Patented Muncie drag brake (prevents rotation in OFF mode)
- Optional Pulse Generator: Yes - compatible with System Protection Device
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
Parts manual and diagrams: Muncie CS6 Series PTO parts list with prices
