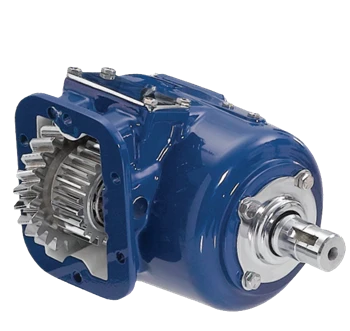

The Muncie CS6 Series Power Take-Off, part number CS6B-A6704-P3BP or CS6BA6704P3BP, is a 6-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump flanges conform to SAE "A", "B", and "BB" as well as DIN 5462 standards, and all direct mount flanges are rotatable to maximize pump clearance. Three remote mount output shaft options cover both keyed and flange types for versatile pump drive configurations. Muncie's patented drag brake prevents output shaft rotation when the unit is in the "OFF" position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your specific transmission and pump setup.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB"; DIN 5462 direct mount pump flange options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Three remote mount output shaft types: keyed and flange configurations
Patented Muncie drag brake prevents shaft rotation when PTO is disengaged
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Series: CS6
- Shift Type: 6-bolt clutch shift
- Direct Mount Pump Standards: SAE "A", "B", "BB"; DIN 5462
- Remote Mount Output Shafts: 3 options (keyed and flange types)
- Transmission Input Compatibility: 19 input gear options spanning most popular automatic and manual transmissions
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Accessory: Pulse generator for System Protection Device shaft speed monitoring
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
