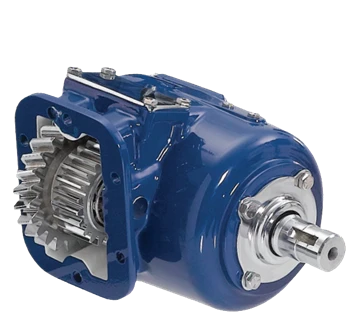

The Muncie CS6 Series Power Take-Off, part number CS6B-A6705-A1BX or CS6BA6705A1BX, is a 6-bolt clutch shift PTO built for both automatic and manual transmission applications, including the Allison 1000/2000 series. The CS6 Series accommodates SAE "A", "B", and "BB" as well as DIN 5462 direct mount pump configurations, with rotatable flanges for maximum pump clearance. Three remote mount output shaft options - keyed and flange types - give added flexibility for remote pump drives. Patented Muncie drag brake prevents shaft rotation when the PTO is in the OFF position. An optional pulse generator supports System Protection Device monitoring of PTO shaft speed. Call us to confirm proper fit for your application.
Features
6-bolt clutch shift activation
Compatible with Allison 1000/2000 series automatics and many manual transmissions
SAE "A", "B", and "BB"; DIN 5462 direct mount pump options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator for System Protection Device PTO shaft speed monitoring
Tech Specs
- Activation: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Direct Mount Flanges: Rotatable for pump positioning
- Output Shafts: Three remote mount options - keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents rotation in OFF mode)
- Optional Pulse Generator: Compatible with System Protection Device
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
