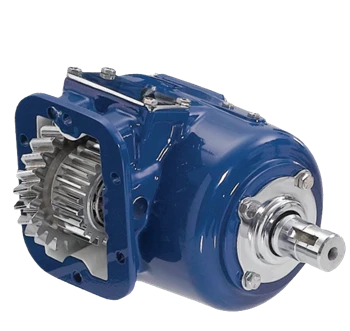

The Muncie CS6B-I8403-G1KP is a CS6 Series Power Take-Off featuring a 6-bolt clutch shift configuration. Part of the CS6/CS8 family, this PTO is commonly used with Allison 1000/2000 series transmissions and many manual transmissions. It accepts SAE "A", "B", and "BB" as well as DIN 5462 direct mount pump configurations, with rotatable direct mount flanges for pump positioning and clearance. Three remote mount output shaft options are available in keyed and flange types. The series includes Muncie's patented drag brake, which prevents shaft rotation when the PTO is in the off position. Call us to confirm the right fit for your transmission and pump setup.
Features
CS6 Series PTO with 6-bolt clutch shift design
Compatible with Allison 1000/2000 series and many manual transmissions
Accepts SAE "A", "B", and "BB" and DIN 5462 direct mount pump flanges
Rotatable direct mount flanges for flexible pump positioning
Patented Muncie drag brake prevents output shaft rotation in the off position
Three remote mount output shaft options in keyed and flange configurations
Tech Specs
- Part Number: CS6B-I8403-G1KP or CS6BI8403G1KP
- Series: Muncie CS6/CS8
- Configuration: 6-Bolt Clutch Shift
- Direct Mount Pump Options: SAE "A", "B", "BB"; DIN 5462
- Output Shaft Options: Three remote mount options in keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in off position)
- Common Transmission Fitment: Allison 1000/2000 series and many manual transmissions
