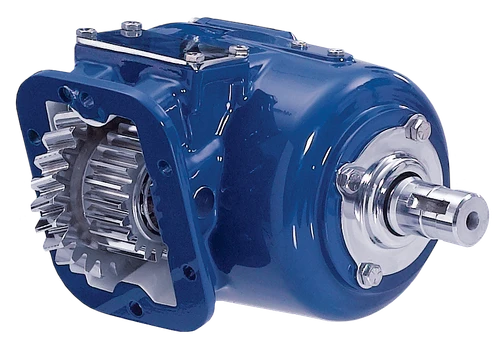

The Muncie CS6 Series Power Take-Off, part number CS6B-I8407-J3KP or CS6BI8407J3KP, is a 6-bolt clutch shift PTO from Muncie Power Products' CS6/CS8 Series. This series is designed to fit a wide range of automatic and manual transmissions, including Allison 1000/2000 series units, accepting six transmission input gears for broad compatibility. Direct mount pump flanges are rotatable for maximum clearance, and SAE "A", "B", and "BB" as well as DIN 5462 pump mount options are supported. The patented Muncie drag brake prevents shaft rotation when the PTO is disengaged. An optional pulse generator allows PTO shaft speed monitoring via a System Protection Device. Call us to confirm proper fit for your transmission and application.
Features
CS6 Series PTO with 6-bolt clutch shift configuration
Fits Allison 1000/2000 series and many manual transmissions via six input gear options
SAE "A", "B", and "BB"; DIN 5462 direct mount pump options
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents shaft rotation in the OFF position
Compatible with optional pulse generator for PTO shaft speed monitoring
Tech Specs
- Series: CS6/CS8
- Configuration: 6-Bolt Clutch Shift
- Pump Mount Options: SAE "A", SAE "B", SAE "BB", DIN 5462 direct mount
- Transmission Compatibility: Allison 1000/2000 series and many manual transmissions (six input gears)
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Yes, for System Protection Device shaft speed monitoring
- Part Number: CS6B-I8407-J3KP or CS6BI8407J3KP
