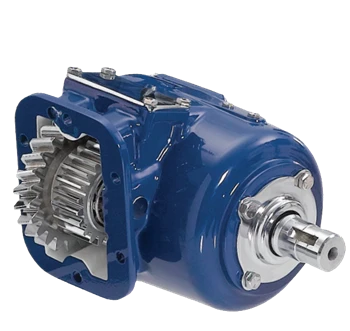

The Muncie CS6B-I8407-S3KP or CS6BI8407S3KP is a CS6 Series power take-off built around a 6-bolt clutch shift design. It fits Allison 1000/2000 series automatics as well as many popular manual transmissions, accepting six transmission input gears across the CS6/CS8 platform. The unit supports SAE "A", "B", and "BB" and DIN 5462 direct mount pump configurations, with rotatable flanges that allow the pump to be positioned for maximum clearance in the chassis. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. An optional pulse generator is available to let a System Protection Device monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
CS6 Series PTO with 6-bolt clutch shift engagement
Fits Allison 1000/2000 series automatics and many popular manual transmissions
Accepts six transmission input gear configurations across the CS6/CS8 platform
SAE "A", "B", "BB" and DIN 5462 direct mount pump flanges; rotatable for clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Optional pulse generator available for System Protection Device shaft-speed monitoring
Tech Specs
- Part Number: CS6B-I8407-S3KP or CS6BI8407S3KP
- Series: Muncie CS6/CS8
- Shift Type: 6-Bolt Clutch Shift
- Transmission Fit: Allison 1000/2000 Series; many popular manual transmissions
- Direct Mount Pump Standards: SAE "A", "B", "BB"; DIN 5462
- Drag Brake: Patented Muncie drag brake included
- Optional Feature: Pulse generator for shaft-speed monitoring
