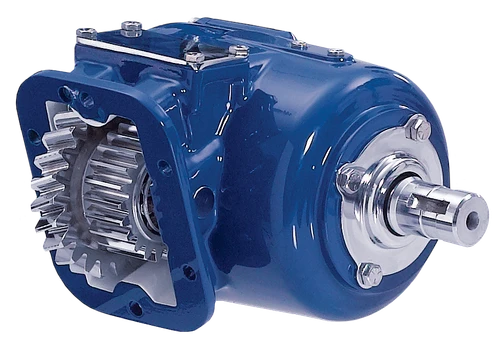

The Muncie CS6S-U6809-E3CX or CS6SU6809E3CX is a CS6 Series power take-off featuring a 6-bolt clutch shift configuration. Part of Muncie's CS6/CS8 family, it is designed to fit Allison 1000/2000 series automatic transmissions as well as many popular manual transmissions. The unit accepts SAE "A", "B", and "BB" and DIN 5462 direct-mount pump flanges, with rotatable flange positioning for maximum clearance in tight installations. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. Three remote-mount output shaft options in keyed and flange types provide flexibility for remote pump drive setups. Call us to confirm proper fit for your transmission and pump configuration.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series automatic transmissions and many popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct-mount pump flange compatibility
Rotatable direct-mount flanges for adjustable pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Three remote-mount output shaft options available in keyed and flange types
Tech Specs
- Series: CS6
- Configuration: 6-Bolt Clutch Shift
- Direct-Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Transmission Compatibility: Allison 1000/2000 series; many manual transmissions
- Output Shaft Options: Three remote-mount types - keyed and flange
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Compatible (monitors PTO shaft speed via System Protection Device)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
