Muncie PTO P/N: CS8B-U6807-A1BX or CS8BU6807A1BX

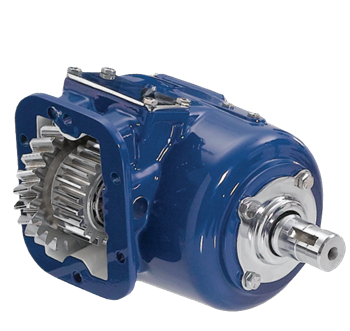

Stock photo not actual item

CS8B-U6807-A1BX Muncie CS8 Series PTO

Muncie

Listing Price: $4,298.77
Sale Price: $3,280.50

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
MUNCS8BU6807A1BX
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Muncie CS8 Series power take-off, part number CS8B-U6807-A1BX or CS8BU6807A1BX, is an 8-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump flanges cover SAE "A", "B", and "BB" as well as DIN 5462 patterns, and all flanges are rotatable so the pump can be positioned for maximum clearance. Three remote mount output shafts are available in keyed and flange types for remote pump drive applications. Muncie's patented drag brake prevents shaft rotation when the PTO is in the OFF position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your specific transmission and pump configuration.

Features

CS8 Series 8-bolt clutch shift power take-off
Fits most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB"; DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for maximum pump clearance positioning
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator compatible with System Protection Device for PTO shaft speed monitoring

Tech Specs

  • Muncie CS6 model construct
  • Muncie PTO CS6 Assembly Arrangements
  • Muncie PTO CS6 dimensional drawing
  • Series: CS8
  • Shift Type: 8-Bolt Clutch Shift
  • Direct Mount Pump Patterns: SAE "A", "B", "BB"; DIN 5462
  • Output Shaft Options: Three remote mount shafts - keyed and flange types
  • Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
  • Optional Pulse Generator: Compatible with System Protection Device

Additional Information

PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
0357300210(43)(407)(285)
0457300210(43)(407)(285)
0557300210(43)(407)(285)
0657300210(43)(407)(285)
0757300210(43)(407)(285)
0952275193(39)(373)(261)
1252275193(39)(373)(261)
1452275193(39)(373)(261)
!
