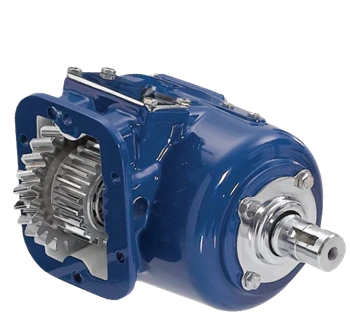

The Muncie CS8D-S6807-E1BD or CS8DS6807E1BD is a CS8 Series power take-off built around an 8-bolt clutch shift engagement. It covers 19 transmission input gear configurations, making it compatible with most popular automatic and manual transmissions. Three remote-mount output shaft options - keyed and flange types - give hydraulic system designers flexibility for remote pump drives. Direct-mount pump flanges accommodate SAE "A", "B", and "BB" as well as DIN 5462 patterns, and the flanges rotate to maximize clearance around surrounding components. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. An optional pulse generator supports PTO shaft-speed monitoring through a System Protection Device. Call us to confirm proper fit for your specific transmission and pump combination.
Features
CS8 Series PTO, part number CS8D-S6807-E1BD or CS8DS6807E1BD
8-bolt clutch shift engagement
19 transmission input gear configurations for broad automatic and manual transmission coverage
SAE "A", "B", and "BB" and DIN 5462 direct-mount pump flanges; flanges are rotatable for clearance
Three remote-mount output shaft options in keyed and flange types
Patented Muncie drag brake prevents shaft rotation in the OFF position; optional pulse generator available for shaft-speed monitoring
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
