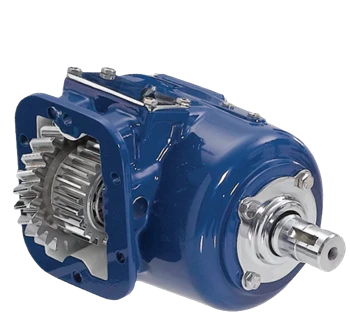

The Muncie CS8S-U6807-A1EX or CS8SU6807A1EX is a CS8 Series Power Take-Off featuring an 8-bolt clutch shift design. It offers SAE "A", "B", and "BB" as well as DIN 5462 direct mount pump flanges, and the flanges rotate to allow pump positioning for maximum clearance. Three remote mount output shafts are available in keyed and flange configurations for added versatility in remote pump drive installations. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. An optional pulse generator can be added to let a System Protection Device monitor PTO shaft speed. The unit measures 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump combination.
Features
CS8 Series PTO, 8-bolt clutch shift design
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for pump positioning and maximum clearance
Three remote mount output shafts available in keyed and flange types
Patented Muncie drag brake prevents shaft rotation in the OFF position
Optional pulse generator supports System Protection Device shaft speed monitoring
Tech Specs
- Part Number: CS8S-U6807-A1EX or CS8SU6807A1EX
- Series: CS8
- Shift Type: 8-Bolt Clutch Shift
- Direct Mount Pump Options: SAE "A", SAE "B", SAE "BB", DIN 5462
- Output Shaft Options: Three remote mount shafts - keyed and flange types
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- NMFC Code: 128520 - Hydraulic PTOs, Pumps, Motors, etc.
