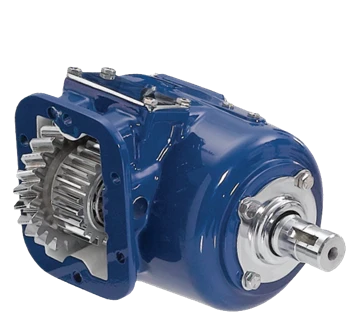

The Muncie CS8 Series Power Take-Off, part number CS8S-U6807-H3SX or CS8SU6807H3SX, is an 8-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump flanges are rotatable for maximum clearance and accept SAE "A", "B", and "BB" as well as DIN 5462 pump configurations. Three remote mount output shaft options in keyed and flange types accommodate a range of remote pump drive setups. The patented Muncie drag brake prevents unintended shaft rotation when the PTO is in the off position. An optional pulse generator is available to allow a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your transmission and pump configuration.
Features
CS8 Series PTO with 8-bolt clutch shift engagement
Fits Allison 1000/2000 series and many manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents shaft rotation in OFF mode
Optional pulse generator supports System Protection Device shaft speed monitoring
Tech Specs
- Part Number: CS8S-U6807-H3SX or CS8SU6807H3SX
- Series: CS8
- Shift Type: 8-Bolt Clutch Shift
- Direct Mount Pump Interfaces: SAE "A", SAE "B", SAE "BB", DIN 5462
- Remote Output Shafts: Three options - keyed and flange types
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
