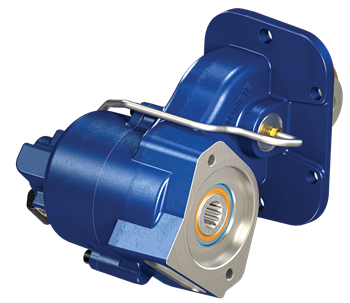

The Muncie FR64-F1506-G4TX is a solenoid-activated power takeoff unit engineered specifically for 4x2 and 4x4 Ford Super Duty trucks - F-350, F-450, and F-550 - equipped with the Ford 6R140 automatic transmission. It may also be used on F-650 and F-750 applications. This FR6Q Series PTO installs as a one-piece unit with a rocker and includes a preconfigured wiring harness, simplifying installation time at the chassis. A built-in noise abatement mechanism eliminates virtually all gear rattle, a common complaint on PTO-equipped service trucks. At 1,000 RPM in stationary operation, the unit is rated at 39 HP intermittent with 200 lb-ft intermittent torque and 140 lb-ft continuous torque. Call us to confirm proper fit for your specific application.
Features
Fits 4x2 and 4x4 Ford Super Duty F-350, F-450, F-550 (and may also fit F-650/F-750) with the Ford 6R140 automatic transmission
Solenoid-activated engagement with preconfigured wiring harness
One-piece installation with rocker for simplified mounting
Noise abatement mechanism eliminates virtually all PTO gear rattle
Stationary intermittent rating: 39 HP and 200 lb-ft torque at 1,000 RPM
Mobile continuous torque rating: 120 lb-ft
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
(09) Stationary |
39 | 200 | 140 | (29) | (271) | (190) |
(09) Mobile |
22 | *120 | 120 | (16) | (162) | (162) |
| *FR6Q limit in mobile applications - continuous and intermittent | ||||||
