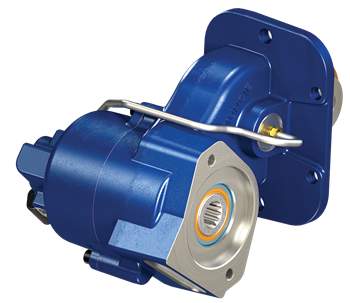

The Muncie FR64-F1506-Z4NX (also listed as FR64F1506Z4NX) is a solenoid-activated power takeoff from the Muncie FR6Q Series, engineered for Ford 6R140 automatic transmissions in 4x2 and 4x4 Ford Super Duty F-350, F-450, and F-550 trucks. It may also be used on F-650 and F-750 applications. A built-in noise abatement mechanism eliminates virtually all gear rattle for noticeably quieter operation. The unit ships preconfigured with a wiring harness and installs as a single assembly with a rocker, simplifying installation. For stationary applications, intermittent torque is rated at 200 lb-ft and continuous torque at 140 lb-ft at the (09) speed ratio. Mobile intermittent and continuous torque is rated at 120 lb-ft. Call us to confirm proper fit for your application.
Features
Fits 4x2 and 4x4 Ford Super Duty F-350, F-450, and F-550 with Ford 6R140 transmission; may also fit F-650 and F-750
Solenoid activated engagement
Noise abatement mechanism eliminates virtually all gear rattle
Preconfigured wiring harness included
One-piece installation with rocker
Stationary intermittent torque: 200 lb-ft; continuous torque: 140 lb-ft at (09) speed ratio
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
(09) Stationary |
39 | 200 | 140 | (29) | (271) | (190) |
(09) Mobile |
22 | *120 | 120 | (16) | (162) | (162) |
| *FR6Q limit in mobile applications - continuous intermittent | ||||||
