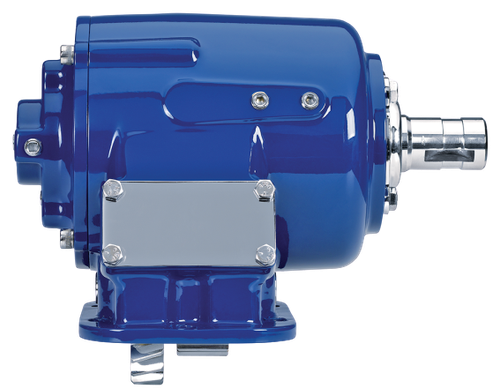

The Muncie SH6F-F8412-A1BX or SH6FF8412A1BX is an SH Series air-shift-only power take-off built for high-torque applications. Its integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed components. The 6-bolt cast iron housing simplifies mounting, and the unit is compatible with 17 input gear sets to fit most popular transmissions. Five available speed ratios and 12 output shaft options give this series broad versatility across pump configurations. The SH Series sits between Muncie's TG and 82 Series in torque capacity. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
Compatible with 17 input gear sets to fit most popular transmissions
5 speed ratios for application versatility
12 output shaft options to match most pump types
High-torque capacity positioned between Muncie TG and 82 Series
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
