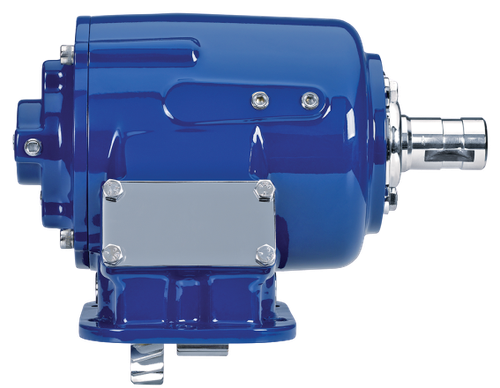

The Muncie SH6S-F6312-E3CX or SH6SF6312E3CX is an air-shift-only power take-off from Muncie Power's SH Series, designed for high-torque applications that sit between the TG and 82 Series in capacity. The integral air shift design keeps the air cylinder fully enclosed, with no exposed components. A 6-bolt cast iron housing makes mounting straightforward and keeps the assembly rigid under load. The SH Series accommodates 17 input gear sets to fit most popular transmission configurations and offers 12 output shaft options to match common hydraulic pump types. Five speed ratios provide application flexibility. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design with fully enclosed air cylinder, no exposed components
6-bolt cast iron housing for rigid, straightforward mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match common hydraulic pump types
5 available speed ratios for application versatility
SH Series fills the capacity gap between Muncie TG and 82 Series PTOs
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
