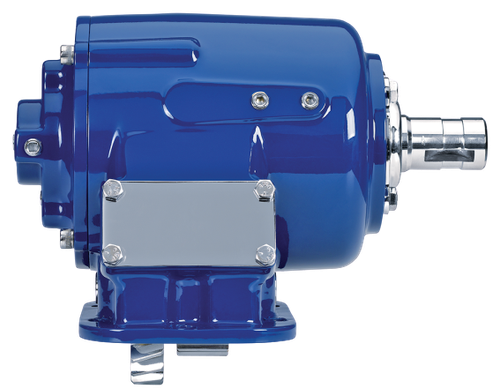

The Muncie SH6S-S7009-E3CX or SH6SS7009E3CX is an SH Series air-shift power take-off built for high-torque truck applications. It features an integral air shift design with no exposed air cylinder, housed in a 6-bolt cast iron mounting configuration. The SH Series bridges the gap between the Muncie TG and 82 Series PTOs, offering 5 speed ratios and compatibility with 17 input gear sets to fit most popular transmissions. Twelve output shaft options cover most common pump types. Housing dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common pump types
5 available speed ratios for application versatility
Housing dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
Tech Specs
- Height: 11.63 in.
- Width: 13.38 in.
- Length: 15.63 in.
- Housing: 6-bolt cast iron
- Shift type: Air shift only
- Input gear sets: 17
- Output shaft options: 12
- Speed ratios available: 5
- Sold as: Each
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
