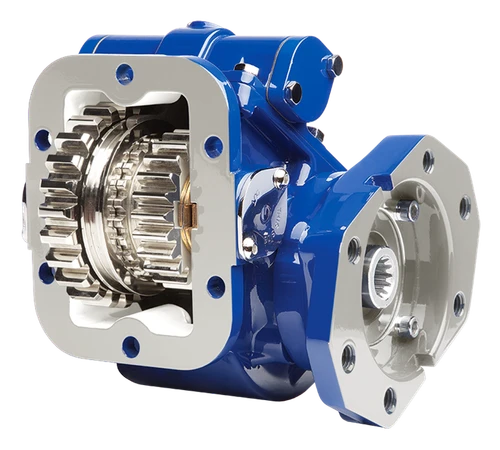

The Muncie SH6S-F7007-E3BX (also referenced as SH6SF7007E3BX) is an SH Series air-shift-only power take-off built for high-torque applications. The integral air shift design encloses the air cylinder within the unit, eliminating external air cylinder exposure. The 6-bolt cast iron housing simplifies mounting while delivering solid structural strength. Depending on the speed ratio selected, this SH Series PTO delivers intermittent torque ratings ranging from 325 to 400 lb-ft (441-542 NM) at 1,000 RPM. The SH Series accommodates 17 input gear sets and 12 output shaft options, covering most popular transmission and pump combinations. Call us to confirm proper fit for your specific transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, straightforward mounting
5 available speed ratios for application versatility
17 input gear sets covering most popular heavy-duty transmissions
12 output shaft options to match most common pump types
Intermittent torque capacity up to 400 lb-ft (542 NM) at 1,000 RPM
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
