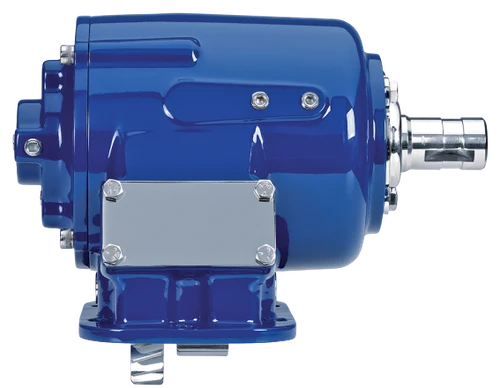

The Muncie SH6S-F7007-P3PX or SH6SF7007P3PX is an air-shift-only power take-off from Muncie's SH Series, built to handle high-torque applications that fall between lighter and heavier PTO lines. The integral air shift design keeps the air cylinder fully enclosed, eliminating the exposed cylinder common on other designs. The 6-bolt cast iron housing mounts securely to most popular transmission applications, with 17 input gear sets and 12 output shaft options covering the widest range of pump types. Five available speed ratios let you match output to the driven equipment. Depending on the speed ratio selected, intermittent torque ratings reach up to 400 lb-ft at 1,000 RPM, with continuous torque up to 280 lb-ft. Call us to confirm the right fit for your transmission and pump combination.
Features
Air shift only design with fully integral, no-exposed-cylinder construction
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match most pump types
5 available speed ratios for application versatility
Intermittent torque capacity up to 400 lb-ft at 1,000 RPM (ratio-dependent)
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
