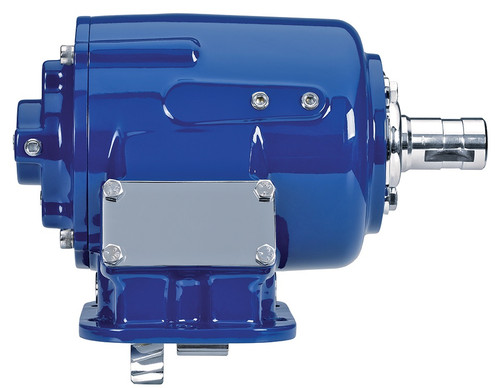

The Muncie SH6S-M6505-E1BX or SH6SM6505E1BX is an SH Series air-shift power take-off built for high-torque applications. The SH Series fills the gap between Muncie's TG and 82 Series, and this unit features an integral air-shift design with no exposed air cylinder, a 6-bolt cast iron housing for straightforward mounting, and compatibility with 17 input gear sets to fit most popular transmissions. Five available speed ratios and 12 output shaft options give this PTO broad flexibility across pump types. Torque ratings vary by speed ratio, with peak intermittent torque of 400 lb-ft and continuous torque of 280 lb-ft at the 05 and 07 ratios. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets covering most popular transmissions
5 speed ratios for application versatility
12 output shaft options to match most pump types
Peak intermittent torque: 400 lb-ft (542 Nm) at 05 and 07 speed ratios
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
