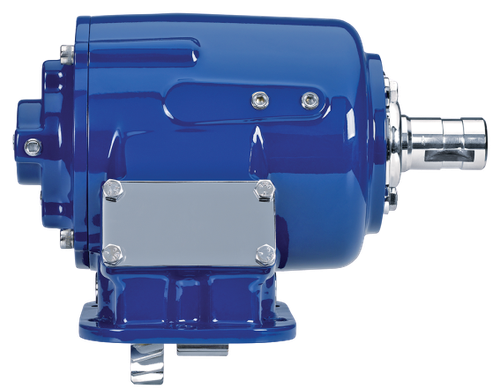

The Muncie SH Series power take-off, part number SH6S-U6809-E1BX or SH6SU6809E1BX, is an air-shift-only PTO built for high-torque applications. Its integral air shift design eliminates exposed air cylinders, keeping the installation cleaner and more protected. The 6-bolt cast iron housing makes mounting straightforward and provides solid structural strength. With 17 input gear sets available across the series, it covers most popular transmission configurations, while 12 output shaft options accommodate a wide range of pump types. Five speed ratios give operators flexibility across demanding duty cycles. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Air-shift-only design with integral air cylinder, no exposed air cylinder components
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets across the series to fit most popular transmissions
12 output shaft options to match most common pump types
5 available speed ratios for versatile duty cycle coverage
Built for high-torque, demanding PTO applications
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
