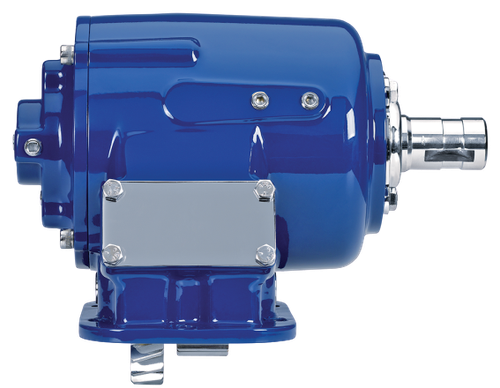

The Muncie SH6S-M6512-A1EX is a SH Series air-shift power take-off built for high-torque truck applications. It features an integral air-shift design with no exposed air cylinder, a 6-bolt cast iron housing for straightforward mounting, and is compatible with 17 input gear sets to fit most popular transmissions. Five available speed ratios and 12 output shaft options give this unit wide application flexibility. At speed ratio 05 or 07, the SH Series rates up to 400 ft-lb intermittent torque and 280 ft-lb continuous torque at 1,000 RPM. The SH6S-M6512-A1EX is also referenced as SH6SM6512A1EX. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for secure, straightforward mounting
17 input gear sets for compatibility with most popular transmissions
5 speed ratios for application versatility
12 output shaft options to match most popular pump types
Up to 400 ft-lb intermittent torque (280 ft-lb continuous) at 1,000 RPM
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
