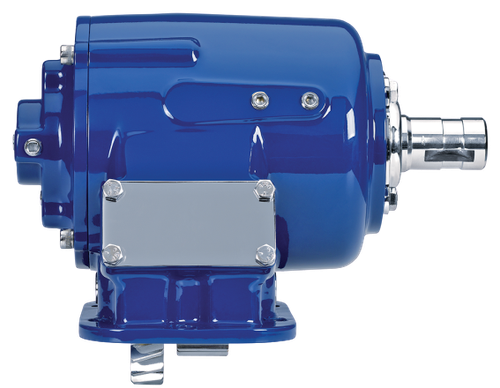

The Muncie SH6S-U6809-A1EX (also referenced as SH6SU6809A1EX) is a Muncie SH Series air-shift power take-off built for high-torque applications. Part of the SH6 series, it mounts via a 6-bolt cast iron housing and uses an integral air shift design with no exposed air cylinder. The SH Series bridges the gap between Muncie's TG and 82 Series PTOs, offering 17 input gear sets to fit most popular transmissions and 12 output shaft options to match the most common pump configurations. Five available speed ratios give you flexibility across different applications. Intermittent torque ratings across the series range up to 400 lb-ft at the fastest ratios. Available from Pro Gear and Transmission. Call us to confirm proper fit for your specific transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common pump types
5 available speed ratios for versatility across applications
Intermittent torque up to 400 lb-ft (542 Nm) at series speed ratios 05 and 07
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
