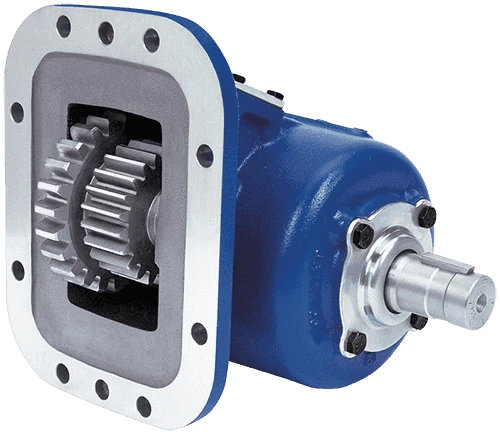

The Muncie SH6S-U6813-P1BX or SH6SU6813P1BX is an SH Series power take-off built for high-torque air shift applications. It bridges the gap between the Muncie TG and 82 Series, offering an integral air shift design with no exposed air cylinder. The 6-bolt cast iron housing simplifies mounting and provides structural strength. With 5 available speed ratios and 12 output shaft options, the SH Series fits most popular pump types. Seventeen input gear sets cover most popular transmission applications. Call us to confirm proper fit for your truck and transmission combination.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets to fit most popular transmissions
5 speed ratios with intermittent torque ratings up to 400 lb-ft at 1,000 RPM
12 output shaft options to fit most popular pump types
Designed for high-torque applications between the Muncie TG and 82 Series
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
