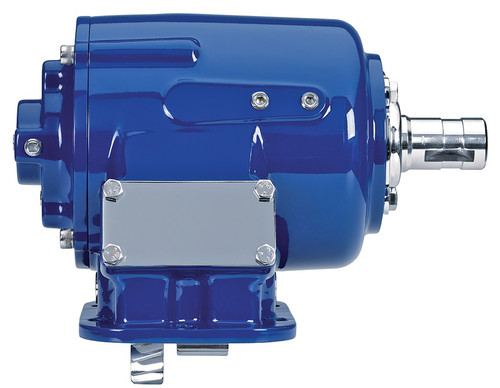

The Muncie SH6S-U6809-P1BX is an air shift power take-off from Muncie's SH Series, designed to bridge the torque gap between the TG and 82 Series PTOs. The 6-bolt cast iron housing mounts easily to most popular transmissions, supported by 17 available input gear sets. Integral air shift design eliminates exposed air cylinders. The SH Series offers 5 speed ratios and 12 output shaft options to match a wide range of pump configurations. Intermittent torque ratings across the speed ratio range reach up to 400 ft-lb (542 Nm) at 1,000 RPM, with continuous ratings up to 280 ft-lb (379 Nm). Also referenced as SH6SU6809P1BX. Call us to confirm proper fit for your transmission and application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for easy mounting and high strength
17 input gear sets to fit most popular transmissions
12 output shaft options for compatibility with most pump types
5 available speed ratios
Intermittent torque up to 400 ft-lb (542 Nm) at 1,000 RPM depending on speed ratio selected
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
