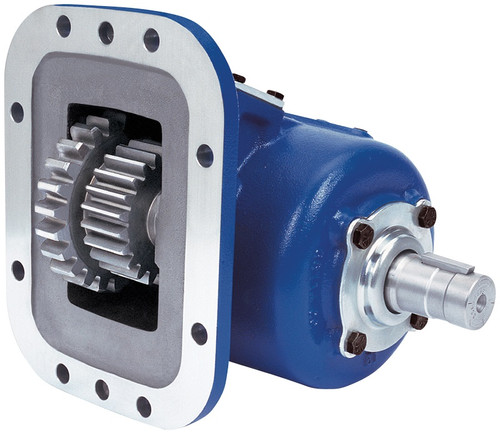

The Muncie SH8B-U6809-A1KX or SH8BU6809A1KX is an air-shift-only power take-off from the Muncie SH Series, designed to fill the torque gap between the TG and 82 Series PTOs. The housing is 8-bolt cast iron, measuring 11.63 in. tall, 13.38 in. wide, and 15.63 in. long. Mounting is straightforward thanks to the integral air shift design, which eliminates any exposed air cylinder. The SH Series supports 17 input gear sets to fit most popular transmissions, 5 speed ratios, and 12 output shaft options to match the most common pump configurations. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design - no exposed air cylinder
8-bolt cast iron housing, 11.63 in. x 13.38 in. x 15.63 in. (H x W x L)
17 input gear sets cover most popular transmission applications
5 speed ratios for application versatility
12 output shaft options fit most popular pump types
SH Series rated up to 76 HP and 400 ft-lbs intermittent torque at 1000 RPM (series-level rating)
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift (integral, no exposed air cylinder)
- Housing Height: 11.63 in.
- Housing Width: 13.38 in.
- Housing Length: 15.63 in.
- Input Gear Sets: 17 (fits most popular transmissions)
- Speed Ratios Available: 5
- Output Shaft Options: 12
- Series Torque Rating (Intermittent, Speed Ratio 05 or 07): 400 ft-lbs / 542 NM at 1000 RPM
- Series Torque Rating (Continuous, Speed Ratio 05 or 07): 280 ft-lbs / 379 NM
- Series HP Rating (Intermittent, Speed Ratio 05 or 07): 76 HP / 57 kW at 1000 RPM
- Note: Torque and HP ratings above are SH Series family ratings; verify specific ratio for this configuration.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
