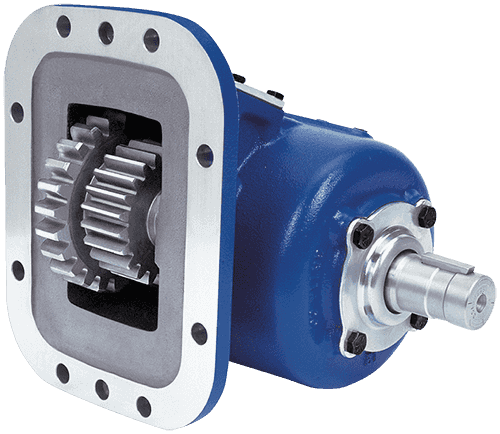

The Muncie SH8 Series power take-off SH8S-M6507-P3PX or SH8SM6507P3PX is an air-shift-only PTO built for high-torque applications, filling the performance gap between the TG and 82 Series. The integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed external components. The 8-bolt cast iron housing provides a rigid, high-strength mount. With 17 input gear sets available across the SH8 Series, this PTO fits most popular transmission configurations. Five speed ratios offer application flexibility, and 12 output shaft options cover the most common pump interfaces. Torque ratings vary by speed ratio, with intermittent torque reaching up to 400 lb-ft at speed ratios 05 and 07. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for rigid, high-strength mounting
17 input gear sets cover most popular transmission applications
5 speed ratios for application flexibility
12 output shaft options to match most common pump types
Intermittent torque up to 400 lb-ft (542 Nm) at speed ratios 05 and 07
Tech Specs
- Series: Muncie SH8 Series Power Take-Off
- Part Number: SH8S-M6507-P3PX or SH8SM6507P3PX
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Speed Ratios Available: 5
- Input Gear Sets Available: 17
- Output Shaft Options: 12
- Speed Ratio 05 - Intermittent: 76 HP / 400 lb-ft (57 kW / 542 Nm) | Continuous: 280 lb-ft (379 Nm)
- Speed Ratio 07 - Intermittent: 76 HP / 400 lb-ft (57 kW / 542 Nm) | Continuous: 280 lb-ft (379 Nm)
- Speed Ratio 09 - Intermittent: 71 HP / 375 lb-ft (53 kW / 508 Nm) | Continuous: 263 lb-ft (356 Nm)
- Speed Ratio 12 - Intermittent: 62 HP / 325 lb-ft (46 kW / 441 Nm) | Continuous: 228 lb-ft (309 Nm)
- Speed Ratio 13 - Intermittent: 62 HP / 325 lb-ft (46 kW / 441 Nm) | Continuous: 228 lb-ft (309 Nm)
- HP ratings are at 1000 RPM
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
