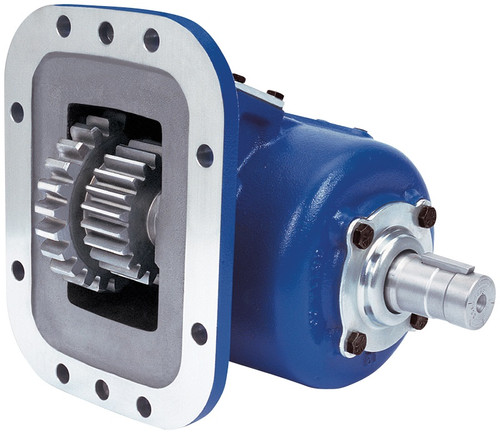

The Muncie SH8S-M6509-A3EX or SH8SM6509A3EX is an SH8 Series air-shift power take-off built for high-torque truck applications. The integral air shift design keeps the air cylinder internal to the housing, eliminating exposed components. The 8-bolt cast iron housing mounts securely to the transmission without adapters. With 17 input gear sets available across the series, this PTO fits most popular transmission configurations, and 12 output shaft options cover most common hydraulic pump interfaces. Five speed ratios give installers flexibility to match pump and engine speed requirements. Intermittent torque ratings across the five available ratios range from 325 to 400 lb-ft at 1,000 RPM. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design - no exposed air cylinder
8-bolt cast iron housing for secure, high-strength mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common hydraulic pump types
5 speed ratios available across the series
Intermittent torque ratings from 325 to 400 lb-ft at 1,000 RPM depending on speed ratio
Tech Specs
- Series: Muncie SH8 Series PTO
- Shift Type: Air shift only (integral design, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets Available: 17
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Intermittent Torque (Ratio 05): 400 lb-ft / 542 Nm at 1,000 RPM
- Continuous Torque (Ratio 05): 280 lb-ft / 379 Nm
- Intermittent Torque (Ratio 07): 400 lb-ft / 542 Nm at 1,000 RPM
- Continuous Torque (Ratio 07): 280 lb-ft / 379 Nm
- Intermittent Torque (Ratio 09): 375 lb-ft / 508 Nm at 1,000 RPM
- Continuous Torque (Ratio 09): 263 lb-ft / 356 Nm
- Intermittent Torque (Ratio 12): 325 lb-ft / 441 Nm at 1,000 RPM
- Continuous Torque (Ratio 12): 228 lb-ft / 309 Nm
- Intermittent Torque (Ratio 13): 325 lb-ft / 441 Nm at 1,000 RPM
- Continuous Torque (Ratio 13): 228 lb-ft / 309 Nm
- Intermittent HP at 1,000 RPM: 76 HP / 57 kW (ratios 05, 07); 71 HP / 53 kW (ratio 09); 62 HP / 46 kW (ratios 12, 13)
- Alternate Part Number: SH8SM6509A3EX
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
