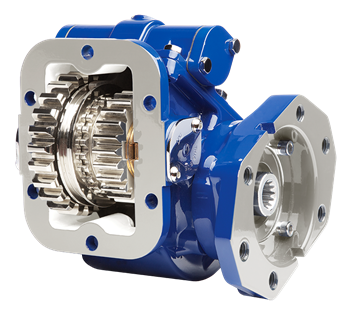

The Muncie SH8S-U6807-P1IX or SH8SU6807P1IX is a heavy-duty power takeoff built around an integral air shift design that keeps the air cylinder fully enclosed inside the housing, eliminating exposed external components. The 8-bolt cast iron housing mounts solidly to the transmission and stands up to demanding operating cycles. With 17 input gear sets available, this PTO fits most popular transmission configurations, while 12 output shaft options give it the flexibility to drive most common pump types. Five speed ratios let you dial in the correct output for your specific application. Torque ratings vary by ratio, with intermittent torque reaching 400 lb-ft on the 05 and 07 ratios down to 325 lb-ft on the 12 and 13 ratios. Call us to confirm the right ratio and output shaft configuration for your truck.
Features
Integral air shift design - no exposed external air cylinder
8-bolt cast iron housing for solid mounting and long service life
17 input gear sets to fit most popular transmission models
12 output shaft options to match most common pump configurations
5 speed ratios available for application flexibility
Intermittent torque ratings from 325 to 400 lb-ft depending on ratio selected
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) |
(309)
|
