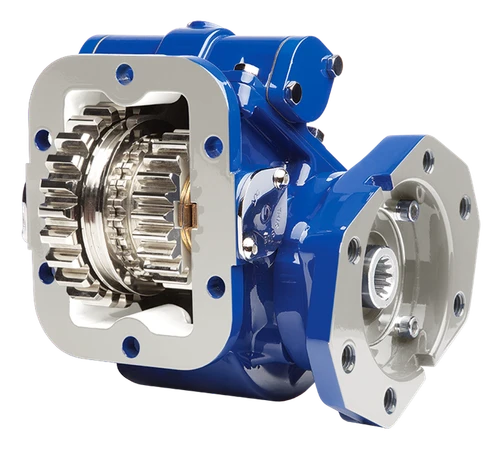

The Muncie TG6B-A6905-41KP or TG6BA690541KP is a TG6 Series power take-off with a 6-bolt housing and a mechanical shift. The TG Series is a double-gear type PTO with a die-cast aluminum housing that keeps the unit lighter and quieter and sheds heat well, a constant mesh input gear that isolates the transmission from engagement errors, and an extra large shift cover opening that makes it easy to check backlash.
A power take-off sends engine power out of the drivetrain to auxiliary equipment, which is how a truck drives hydraulic pumps and other driven equipment. This is a genuine Muncie part from Pro Gear and Transmission. Call us with your transmission and application to confirm proper fit.
Features
Muncie TG6 Series PTO, 6-bolt housing with mechanical shift
Die-cast aluminum housing for lower noise and good heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Modular design for flexibility and ease of repair
Extra large shift cover opening allows easy access to check backlash
Compact size minimizes mounting interference
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
- Chelsea442GBHVP-A3RAView and buy
+ See 1 more equivalent unit
- Chelsea442GBHVP-A3XKView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
