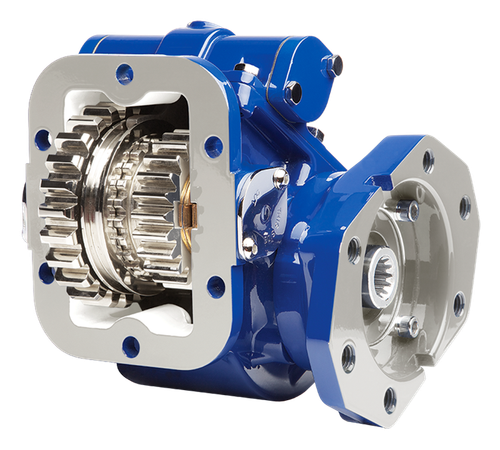

The Muncie TG6F-F8615-A1BH or TG6FF8615A1BH is a TG Series double-gear power take-off, the most widely used PTO type in the industry. The TG Series accommodates 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears covering all popular transmissions, making it adaptable to most speed, torque, and horsepower requirements. The die-cast aluminum housing dissipates heat and reduces noise, while the compact footprint minimizes mounting interference. Electric or hydraulic shift eliminates shift cables entirely. Rotatable hydraulic flanges provide additional pump clearance flexibility. Call us to confirm proper fit and configuration for your transmission and application.
Features
Muncie TG Series double-gear PTO - the most widely used design in the industry
Die-cast aluminum housing for reduced noise and superior heat dissipation
6 or 8-bolt housing for simplified installation across popular transmission applications
Electric or hydraulic shift option eliminates the need for shift cables
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges and extra-large shift cover opening for backlash access and pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
