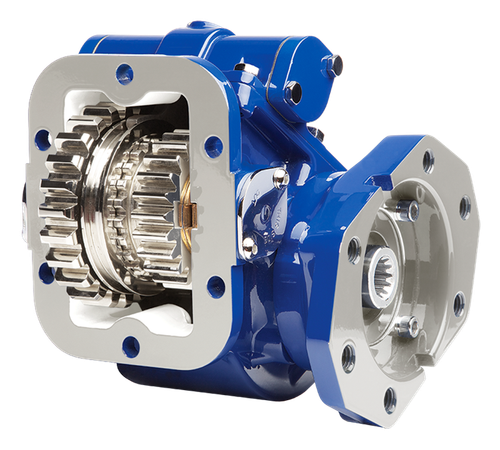

The Muncie TG Series power take-off, part number TG6F-F8615-E3K7 or TG6FF8615E3K7, is a double-gear type PTO built on one of the most widely used PTO platforms in the heavy-duty truck industry. The TG Series supports 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears covering all popular transmissions. Its die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. The 6 or 8-bolt bolt pattern simplifies installation, and the modular design speeds up service. Electric or hydraulic shift capability eliminates shift cables entirely. Call us to confirm proper fit for your transmission and application.
Features
Muncie TG Series double-gear power take-off
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
6 or 8-bolt housing for simplified installation
Electric or hydraulic shift option eliminates the need for shift cables
Modular design for ease of repair; extra large shift cover opening allows backlash checks
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
- Die-cast aluminum housing
- 6 or 8-bolt mounting pattern
- Double-gear type PTO
- Available with 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears
- Electric or hydraulic shift option
- Constant mesh input gear
- Modular design
Additional Information
| TG SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings shown are TG Series family ratings. Verify specific ratio and output configuration for part number TG6F-F8615-E3K7 against your application requirements. Call Pro Gear and Transmission to confirm proper fit.
