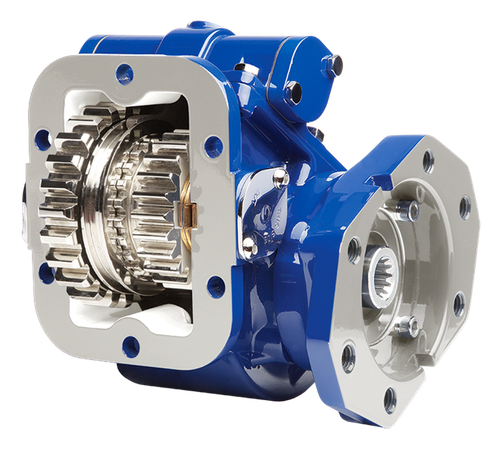

The Muncie TG6F-KIT06-X1BX or TG6FKIT06X1BX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing dissipates heat and reduces noise, while the compact envelope minimizes mounting interference on the transmission. A constant mesh input gear isolates the transmission from engagement errors, and the extra-large shift cover opening gives direct access for backlash inspection. Rotatable hydraulic flanges allow pump clearance to be optimized without moving the PTO. The modular design simplifies field repair. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your application.
Features
TG6 Series double-gear PTO, 6-bolt housing, mechanical shift
Die-cast aluminum housing for heat dissipation and noise reduction
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges to maximize pump clearance
Extra-large shift cover opening for direct backlash inspection
Modular design for simplified field repair
Tech Specs
- Housing Material: Die-cast aluminum
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical
- Overall Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
- Series: TG6 (double-gear type)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
These torque and horsepower ratings apply to the TG Series family. Ratings vary by speed ratio; confirm the correct ratio for your application with Pro Gear and Transmission.
