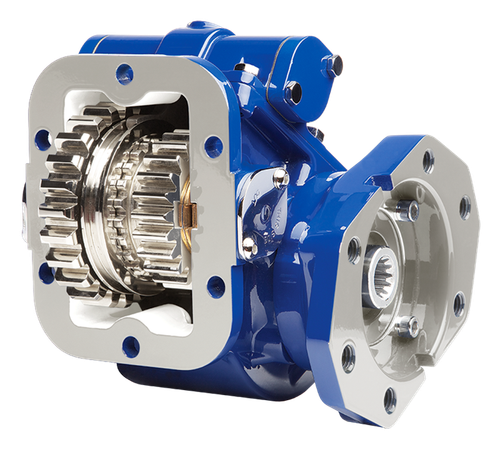

The Muncie TG6F-KIT15-X3BH or TG6FKIT15X3BH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing reduces noise and aids heat dissipation, while the compact envelope - 9.13 in. H x 10.38 in. W x 12.5 in. L - minimizes mounting interference on the transmission. A constant mesh input gear isolates the transmission from engagement errors during PTO engagement. The extra large shift cover opening makes backlash checking straightforward, and rotatable hydraulic flanges give the installer flexibility in positioning the pump. Modular construction simplifies field repair. Call us to confirm fitment for your specific transmission and application.
Features
TG6 Series double-gear PTO, 6-bolt housing configuration with mechanical shift
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Compact housing dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
Rotatable hydraulic flanges for maximum pump clearance and positioning flexibility
Extra large shift cover opening allows easy backlash inspection without disassembly
Tech Specs
- Series: TG6 (Double-Gear Power Take-Off)
- Housing: 6-bolt, die-cast aluminum
- Shift Type: Mechanical
- Housing Dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
- Input Gear: Constant mesh
- Hydraulic Flanges: Rotatable
- Shift Cover: Extra large opening for backlash access
- Part Number: TG6F-KIT15-X3BH or TG6FKIT15X3BH
Additional Information
| TG Series PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
