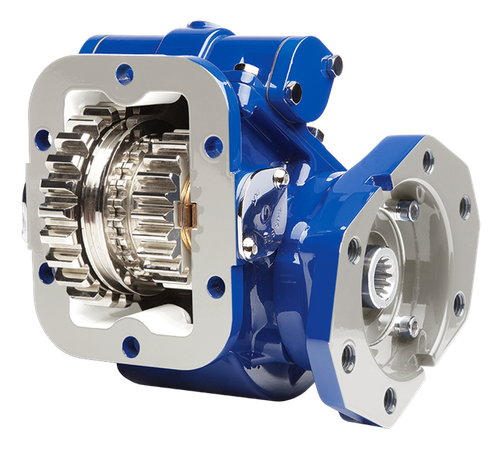

The Muncie TG6N-S7115-A3SH or TG6NS7115A3SH is a TG6 Series power take-off configured with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces heat buildup and keeps the unit compact at 9.13" H x 10.38" W x 12.5" L, minimizing mounting interference in tight engine compartments. A constant mesh input gear isolates the transmission from engagement errors, and the oversized shift cover opening gives technicians straightforward access to check backlash without removing surrounding components. Rotatable hydraulic flanges allow pump positioning to be adjusted for maximum clearance. The TG Series accommodates a broad range of speed ratios, shift types, and output shaft options, making it adaptable across vocational truck applications. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series PTO with 6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Oversized shift cover opening allows easy backlash inspection
Rotatable hydraulic flanges provide adjustable pump clearance
Compact dimensions: 9.13" H x 10.38" W x 12.5" L
Tech Specs
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical shift
- Housing Material: Die-cast aluminum
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
- Series: TG6
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS (TG Series) | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
Equivalent PTOs:
- Chelsea442LUFNX-A5RAView and buy
+ See 1 more equivalent unit
- Chelsea442ZUFNX-A5XKView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
