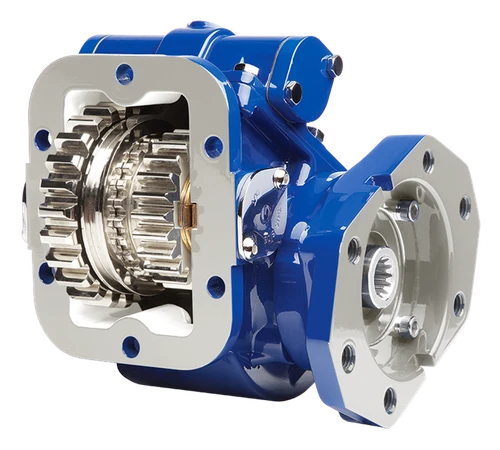

The Muncie TG6N-S7118-A1KH or TG6NS7118A1KH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors during PTO engagement. A modular design simplifies field repairs, and the extra-large shift cover opening makes backlash checks straightforward without removing the unit. Rotatable hydraulic flanges let you position the pump for maximum clearance in tight installations. The TG Series accommodates a wide range of speed ratios, shift types, output shaft options, and input gears for popular transmissions. Call us to confirm proper fit for your application.
Features
TG6 Series double-gear PTO, 6-bolt housing, mechanical shift
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Modular design for ease of field repair and flexibility
Extra-large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges to maximize pump clearance in tight installations
Tech Specs
- Series: TG6
- Housing: 6-bolt, die-cast aluminum
- Shift Type: Mechanical
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
Additional Information
| TG SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | 40 | 386 | 270 |
| 05 | 51 | 270 | 189 | 38 | 366 | 256 |
| 06 | 47 | 245 | 172 | 35 | 332 | 232 |
| 07 | 44 | 230 | 161 | 33 | 312 | 218 |
| 08 | 44 | 230 | 161 | 33 | 312 | 218 |
| 09 | 39 | 205 | 144 | 29 | 278 | 195 |
| 12H | 40 | 210 | 147 | 30 | 284 | 199 |
| 13H | 40 | 210 | 147 | 30 | 284 | 199 |
| 15H | 37 | 195 | 137 | 28 | 264 | 185 |
| 18H | 33 | 175 | 123 | 25 | 237 | 166 |
Ratings shown are TG Series family ratings across available speed ratios. Verify the specific ratio and output configuration for your application before ordering. Contact Pro Gear and Transmission to confirm proper fitment.
