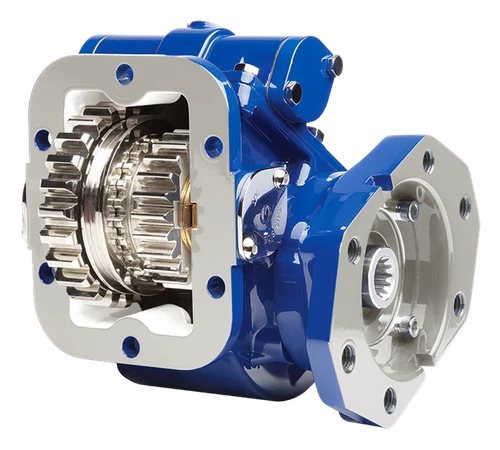

The Muncie TG6N-S7118-C3SH or TG6NS7118C3SH is a TG6 Series power take-off with a 6-bolt housing and mechanical shift configuration. Part of Muncie's most widely used double-gear PTO family, this unit fits a broad range of truck applications and can be configured to meet varied speed, torque, and horsepower requirements. The die-cast aluminum housing delivers superior heat dissipation and reduces noise compared to cast iron. A constant mesh input gear isolates the transmission from engagement errors, and the compact envelope minimizes mounting interference. Rotatable hydraulic flanges provide pump clearance flexibility. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO, part number TG6N-S7118-C3SH or TG6NS7118C3SH
6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
Equivalent PTOs:
- Chelsea442LWFNX-W5RAView and buy
+ See 2 more equivalent units
- Chelsea442ZWFNX-W5XKView and buy
- Chelsea442ZXFNX-W5XKView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
