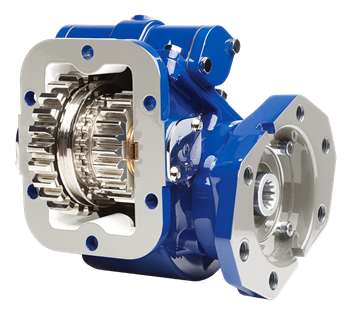

TG6S-U6807-A1BX Muncie PTO

Muncie TG6S-U6807-A1BX or TG6SU6807A1BX PTO from the TG Series, a double-gear power take-off built around a 6-bolt housing with mechanical shift. The TG Series design uses a die-cast aluminum housing that keeps weight and noise down and sheds heat well, and its constant mesh input gear keeps engagement mistakes from reaching the transmission. The modular construction makes the unit easier to repair, and the extra large shift cover opening gives easy access for checking backlash. A power take-off draws drive from the engine through the transmission into its own gearbox, which then turns accessories such as hydraulic or vacuum pumps. Call us to confirm proper fit for your transmission. A genuine Muncie part from Pro Gear and Transmission.

Features

6-bolt housing with mechanical shift
Die-cast aluminum housing for lower weight and noise and better heat dissipation
Constant mesh input gear shields the transmission from engagement errors
Modular design for easier repair
Extra large shift cover opening for easy backlash checks
Rotatable hydraulic flanges for pump clearance

Tech Specs

•

Additional Information

PTO Torque & Horsepower Ratings
Relación de velocidad	Intermitente HP a 1000 RPM	Torque Intermitente lb/pie	Torque Continuo lb/pie	Intermitente (kw) a 1000 RPM	Torque Intermitente (NM)	Torque Continuo (NM)
04	54	285	200	(40)	(386)	(270)
05	51	270	189	(38)	(366)	(256)
06	47	245	172	(35)	(332)	(232)
07	44	230	161	(33)	(312)	(218)
08	44	230	161	(33)	(312)	(218)
09	39	205	144	(29)	(278)	(195)
12H	40	210	147	(30)	(284)	(199)
13H	40	210	147	(30)	(284)	(199)
15H	37	195	137	(28)	(264)	(185)
18H	33	175	123	(25)	(237)	(166)

Approximate Weight: 22 lbs. (10.0 Kg.)

Parts manual and diagrams: Muncie TG Series PTO parts list with prices
