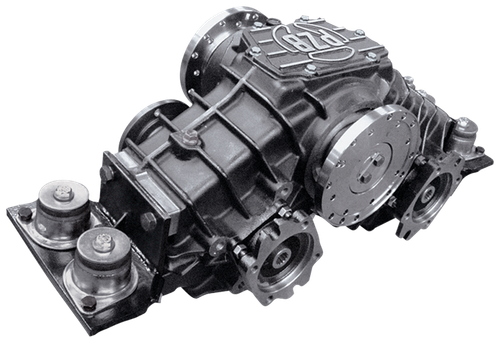

SSH2-14X5-ACKCKX Muncie Split Shaft PTO

The Muncie SSH2-14X5-ACKCKX (also referenced as SSH214X5ACKCKX) is a split shaft power take-off from the Muncie SSH2 series, engineered for extremely heavy-duty truck applications. It features precision ground gearing for quiet, high-torque power delivery and air-shift controls for straightforward activation. The SSH2 series supports up to 21,600 lb.-ft. of thru-shaft torque and up to 940 lb.-ft. of PTO output torque. Four output positions (2 front, 2 rear) accept SAE "B" through SAE "D" pump mounts and Spicer 1410 to 1500 companion flanges. Individual clutch-shift outputs allow each drive to be engaged or disengaged independently without stopping other functions. Available in upright or horizontal configurations. Call us to confirm proper fit for your application.

Features

Air-shift controls for straightforward engagement and activation
Individual clutch-shift outputs: each drive can be activated independently without halting other functions
Precision ground gearing for quiet, high-torque power delivery
Four output positions (2 front, 2 rear): SAE "B" to SAE "D" pump mounts and Spicer 1410-1500 companion flanges
Available in upright or horizontal mounting configurations
Optional frame mounting kit uses isolation-type mounts for simplified installation

Tech Specs

•
• Maximum Torque (thru-shaft): Up to 21,600 lb.-ft. (SSH2 series)
• Maximum PTO Output Torque: Up to 940 lb.-ft. (SSH2 series)
• PTO Outputs: 4 total (2 front, 2 rear)
• Output Mounts: SAE "B" through SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
• Shift Type: Air-shift
• Mounting: Upright or horizontal configurations available

Additional Information

Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
