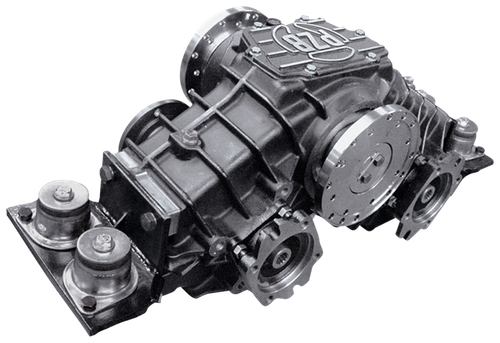

The Muncie SSH2-14X5-AXXXXX (also referenced as SSH214X5AXXXXX) is a split shaft power take-off from Muncie Power's SSH2 series, engineered for extremely heavy-duty applications. It features precision ground gearing for quiet, high-torque power delivery and air-shift controls for straightforward activation. The SSH2 offers both upright and horizontal mounting orientations, giving technicians access to output drives as the installation demands. Individual output controls allow each drive to be managed independently, reducing parasitic load when full output is not needed. The clutch-shift option lets individual outputs be engaged or disengaged without interrupting other active functions. An optional frame mounting kit uses isolation-type mounts for easier installation. Call us to confirm proper fit for your application.
Maximum PTO Output Torque: Up to 940 lb.ft. (SSH2 series rating)
PTO Outputs (2 front, 2 rear): SAE "B" to SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
Features
Precision ground gearing for quiet, high-torque power delivery
Air-shift controls for straightforward activation
Upright or horizontal versions to suit installation requirements
Individual output controls for independent management of multiple drives
Clutch-shift option allows outputs to be engaged or disengaged without stopping other functions
Optional frame mounting kit with isolation-type mounts for easier installation
Tech Specs
Additional Information
Maximum Torque (thru-shaft): Up to 21,600 lb.ft. (SSH2 series rating)Maximum PTO Output Torque: Up to 940 lb.ft. (SSH2 series rating)
PTO Outputs (2 front, 2 rear): SAE "B" to SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
