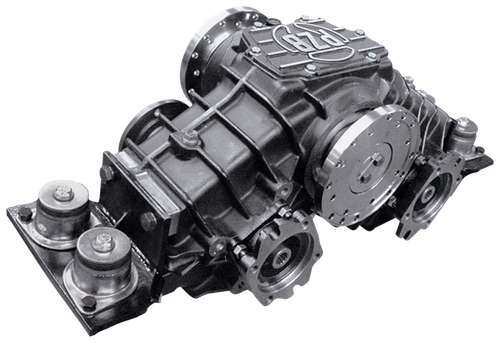

SSH2-21XC-AKKEPX Muncie Split Shaft PTO

The Muncie SSH2-21XC-AKKEPX or SSH221XCAKKEPX is a split shaft power take-off from Muncie's SSH2 series, engineered for extremely heavy-duty applications. The SSH2 series supports up to 21,600 lb-ft of thru-shaft torque and up to 940 lb-ft of PTO output torque. Four output positions (2 front, 2 rear) accept SAE "B" through SAE "D" pump mounts or Spicer 1410 to 1500 companion flanges. Precision ground gearing keeps operation quiet under high torque loads. The air-shift control allows straightforward in-cab activation, and the clutch shift option lets individual outputs engage or disengage without interrupting other driven functions. Available in upright or horizontal mounting configurations, with a frame mounting kit option using isolation-type mounts. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Air-shift controls for straightforward in-cab activation
Precision ground gearing for quiet operation under high torque loads
Four PTO outputs (2 front, 2 rear): SAE "B" to SAE "D" pump mounts, Spicer 1410 to 1500 companion flanges
Clutch shift option allows individual output activation without stopping other functions
Upright or horizontal mounting configurations available
Frame mounting kit option with isolation-type mounts for easier installation

Tech Specs

•
• Maximum Torque (thru-shaft): Up to 21,600 lb-ft (SSH2 series rating)
• Maximum PTO Output Torque: Up to 940 lb-ft (SSH2 series rating)
• PTO Outputs: 4 total (2 front, 2 rear)
• Output Mount Types: SAE "B" through SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
• Shift Type: Air shift
• Mounting Orientation: Upright or horizontal

Additional Information

Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
