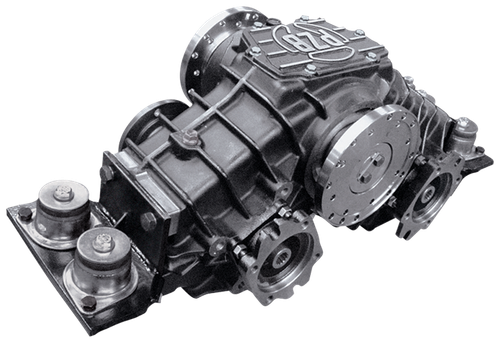

The Muncie SSV2-14X5-AKXXXX or SSV214X5AKXXXX is a Split Shaft PTO built for high-demand, multi-output applications. Maximum thru-shaft torque is rated up to 21,600 lb-ft, with PTO output torque reaching up to 940 lb-ft. The unit offers four output positions, two front and two rear, accommodating SAE "B" through SAE "D" pump mounts and Spicer 1410 to 1500 companion flanges. Air-shift controls allow easy activation, while the clutch-shift option lets operators engage individual outputs without interrupting other driven functions. Available in upright or horizontal configurations, and a frame mounting kit option using isolation-type mounts simplifies installation. Call us to confirm proper fit for your application.
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
Features
Up to 21,600 lb-ft maximum thru-shaft torque
Up to 940 lb-ft maximum PTO output torque
Four output positions: 2 front, 2 rear - SAE "B" through SAE "D" pump mounts
Spicer 1410 to 1500 companion flange compatibility
Air-shift controls for straightforward engagement
Clutch-shift option allows individual output activation without stopping other functions
Tech Specs
- Maximum Torque (thru-shaft): Up to 21,600 lb-ft
- Maximum PTO Output Torque: Up to 940 lb-ft
- PTO Outputs: 2 Front, 2 Rear
- Output Mount Compatibility: SAE "B" through SAE "D" pump mounts
- Companion Flange Compatibility: Spicer 1410 to 1500
- Shift Type: Air shift
- Orientation: Upright or horizontal
- Mounting: Frame mounting kit option with isolation-type mounts
Additional Information
Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
